Parse and structure logs being ingested into your lakehouse engines.

Highlights ​

• Try Auto-Datatyping first, then handle uncategorized events with your own Datatype rules.
• Point your rules at stock v2 Datatypes, or define custom ones. See Datatypes in Cribl Search.
• Datatyping applies to logs, not metrics.

Datatyping in Lakehouse Engines ​

When logs flow from Sources into a lakehouse engine, they’re parsed into structured events through a process called Datatyping. Here’s how you can use it to shape your logs:

1. Use Auto-Datatyping: Let Cribl Search assign Datatypes automatically.
2. Check for uncategorized data: See if any events were missed.
3. Define your own Datatype rules: To handle the uncategorized data, map specific patterns to the existing stock Datatypes.
4. Add custom Datatypes: To parse logs not covered by the stock Datatypes, edit or add entirely new Datatypes.

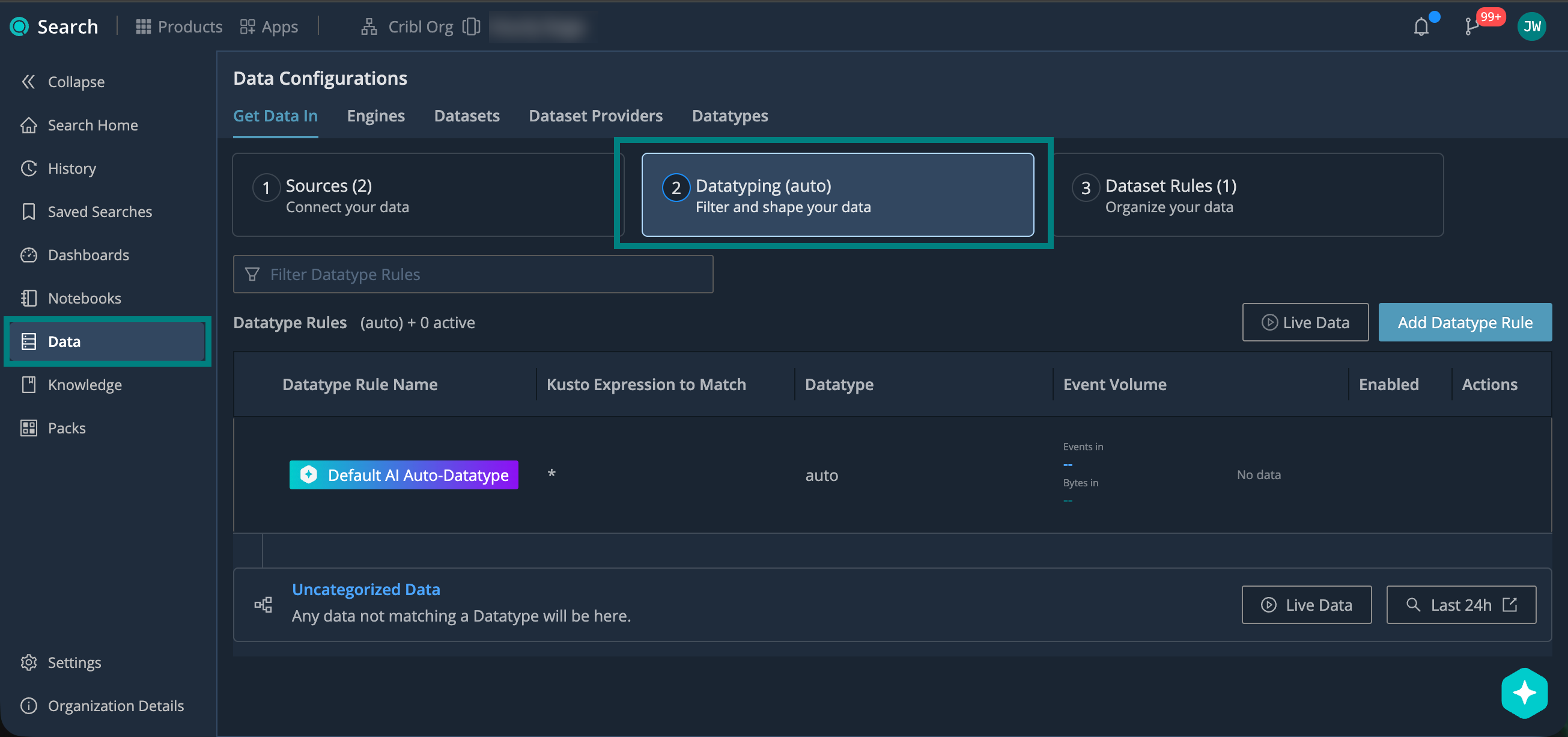

To manage Datatyping in lakehouse engines: from the Cribl.Cloud top bar, select Products > Search > Data > Get Data In > 2. Datatyping (auto).

1. Parse Automatically (Auto-Datatyping) ​

By default, Cribl Search automatically analyzes incoming log events and assigns a matching Datatype. This requires no configuration on your part, and covers many common log types and data formats.

For most log formats, Auto-Datatyping just works.

2. Check for Uncategorized Events ​

Logs that don’t match any Datatype display as Uncategorized.

1. On the Cribl.Cloud top bar, select Products > Search > Data > Get Data In > Datatyping.
2. Under Uncategorized Data, select:
   • View Live Data to see a sample of uncategorized data as it arrives. See Live Data for details.
   • View Last 24h to run a search for uncategorized data from the past 24 hours.

3. Add Datatype Rules ​

To handle logs uncategorized by Auto-Datatyping, define your own rules that map specific log patterns to stock v2 Datatypes or custom v2 Datatypes.

1. On the Cribl.Cloud top bar, select Products > Search > Data > Get Data In > Datatyping.
2. Select Add Datatype Rule. Name and describe your rule.
3. In Kusto expression to match, enter a KQL expression that matches a subset of the uncategorized data.

   For details, see Datatype Rule Expressions.

4. From Datatype, select the Datatype to assign. You can choose from stock v2 Datatypes and your custom v2 Datatypes.
5. Make sure that Enabled in the top right corner is checked, and confirm with Add.

If you add more rules, drag them to change the order. Rules run top-down, and the first match wins. Put more specific rules above broader ones.

Datatype Rule Expressions ​

Point your Datatype KQL expressions at the fields that are guaranteed to exist before Datatype assignment:

You can copy __inputId or other fields from the arriving events. To see them, select Live Data on the Datatyping page.

You can:

• Create KQL expressions that evaluate to true/false for matching events.
• Set case-insensitive conditions using = and wildcards (*).
• Pipe into | where ..., | find ..., or | search ... for richer logic.

But:

• You can’t use expressions that aggregate or reshape data (such as stats or project).
• You can’t use let or set statements.

Examples of Datatype Rule Expressions ​

See the examples below for typical use cases. For full reference on the Cribl Search implementation of KQL, see the KQL Reference.

_raw = "*failed login*"

# Event 1
Mar 19 12:01:44 auth0 sshd[2041]: failed login for user admin from 10.0.0.5

# Event 2
2026-03-19T08:15:00Z WARN Failed Login attempt on account jdoe

__inputId = "syslog:my_source_id"

_raw = "*timeout*" | where __inputId = "open_telemetry:otel"

# Event 1
{"severity":"ERROR","body":"upstream timeout after 30s","resource":{"service.name":"api-gw"}}

# Event 2
{"severity":"WARN","body":"connection timeout to redis-01:6379","resource":{"service.name":"cache"}}

| where __inputId startswith "cribl_http:"

_raw = "*sshd*" | search "Failed password" or "Invalid user"

# Event 1
Mar 19 14:22:01 prod-01 sshd[3421]: Failed password for root from 203.0.113.14 port 54321 ssh2

# Event 2
Mar 19 14:22:03 prod-01 sshd[3422]: Invalid user deploy from 198.51.100.7 port 48291

Combine these patterns to catch multiple log formats with a single rule:

_raw = "*HTTP*" | search (" 500 " or " 502 " or " 503 " or " 504 ") and not "/healthcheck"

# Event 1 (Apache)
10.0.0.42 - alice [15/Apr/2026:09:14:23 +0000] "GET /api/users HTTP/1.1" 502 1247 "-" "curl/8.4.0"

# Event 2 (Nginx)
198.51.100.5 - - [15/Apr/2026:09:14:25 +0000] "POST /checkout HTTP/2.0" 503 891 "-" "Mozilla/5.0 (X11; Linux x86_64)" 0.182

# Event 3 (AWS ALB)
h2 2026-04-15T09:14:27.341Z app/prod-alb/abc123 10.0.1.55:48292 - 0.001 0.142 0.000 504 - 137 1024 "GET https://api.example.com/orders HTTP/2.0"

| search "Out of memory" or "OOMKilled" or "java.lang.OutOfMemoryError" or "Cannot allocate memory"

# Event 1 (Linux kernel)
Mar 20 03:14:22 prod-db-01 kernel: Out of memory: Killed process 24891 (mysqld) score 928

# Event 2 (Kubernetes)
2026-04-15T09:32:14Z kubelet[1024]: container "api-server" terminated, reason: OOMKilled, exit_code: 137

# Event 3 (JVM)
Apr 15 09:32:15 app-server-02 java[15234]: java.lang.OutOfMemoryError: Java heap space at com.example.Service.process(Service.java:142)

4. Add Custom Datatypes ​

To handle uncategorized logs that the stock v2 Datatypes don’t cover:

1. Add a custom v2 Datatype.
2. Create a Datatype rule that points at your custom Datatype.

Fix Timezone Offsets ​

Cribl Search parses each log event and interprets its timestamp. If the event includes timezone information, Cribl Search uses it. Otherwise, it assumes UTC.

You can deal with timezone offsets at different stages:

• Before ingestion: Set the _time override field before the event reaches Cribl Search. When Search finds a _time field on an incoming event, it uses that value and skips its own timestamp parsing.
• At Datatyping: Add a custom v2 Datatype in Cribl Search to fix the offset through your own timestamp extraction settings.
• At Dataset assignment: Use the Modify fields setting in your Dataset rules. This lets you adjust timestamps per Dataset while preserving the upstream Auto-Datatyping flow. For details, see Modify Fields in Dataset Rules.

Override Cribl Search Processing ​

To bypass Cribl Search timestamping, Datatyping, or Dataset rules, add override fields to your log events before they reach Cribl Search. You can add these in Cribl Stream, or in any upstream sender.

For pre-parsed events from Cribl Stream or Cribl Edge, set both datatype and isParsed. If you also route by Dataset upstream, set dataset, too. See Ingest Cribl Stream/Edge Data into Cribl Search.

Next Steps ​

Now that you’ve shaped your logs, organize them into Search Datasets.
