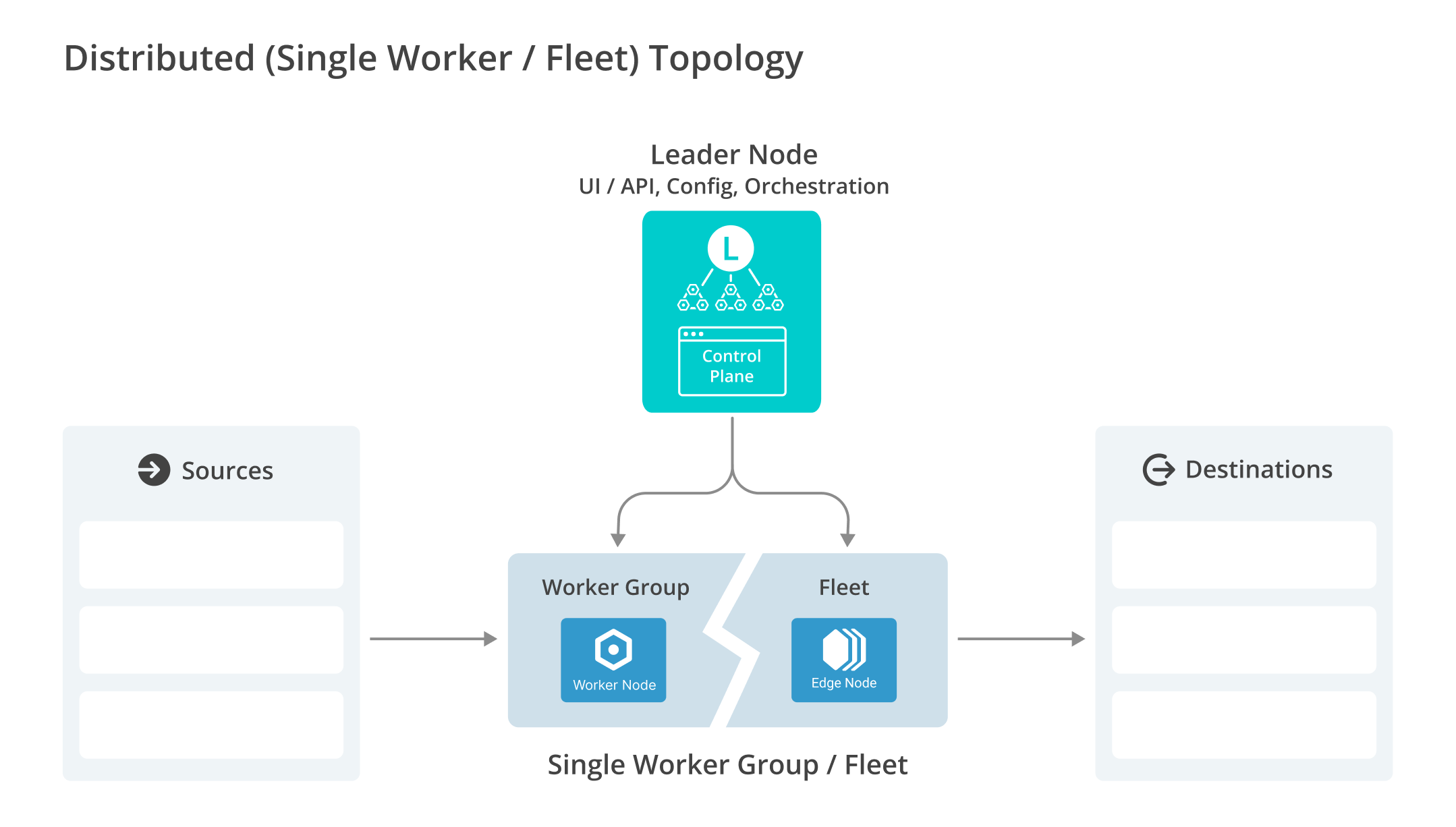

The Distributed (Single Worker Group/Fleet) topology is the default, foundational production archetype for a Cribl deployment.

In this configuration, you have a Leader Node (or a high availability pair for resilience) providing centralized configuration, the UI/API, and orchestration.

All production processing is handled by a single Worker Group/Fleet that contains multiple Worker/Edge Nodes sized for N-1 capacity (designed to handle full load even if one Node fails). For details, see Best Practice: Scale for N+1 Redundancy.

All push-based Sources and Destinations map directly to this single “all-in-one Worker Group,” often accessed through one or more load balancers (LBs) or Virtual IPs (VIPs).

When to Use This Topology ​

This model is the ideal starting point when deployment needs are straightforward and contained:

• Default production: When your data primarily resides within a single region or data center.
• Simple requirements: When there are no strong requirements for data residency, sovereignty, or domain isolation that demand segregation.
• Contained volume: When the total data volume and Source count are well within the connection and throughput limits of a single Worker Group/Fleet, allowing for predictable scaling by simply adding more Worker Nodes over time.

Design Guidelines ​

If you intend for this single Worker Group to be part of a larger architecture later, adopt neutral naming conventions now (for example, wg-core, wg-main) so the Worker Group can easily transition without requiring a rename. Additionally, ensure you implement robust utilization monitoring (CPU, queue depth, connections) to accurately determine when a workload split is necessary. For details, see Operational Monitoring.

Limitations and Triggers for Multi-Worker Groups ​

This topology serves as an excellent base, but real-world complexity often requires layering in additional Worker Groups. You should consider migrating to a Multi-Worker Group topology (like Functional Split or Regional Groups) when any of the following triggers occur:

• Security/compliance boundaries: When you need distinct physical or logical segregation due to multi-tenant domains, different security zones (such as DMZ vs. Core), or strict regional boundaries (such as EU vs. US).
• Workload interference: When different types of workloads (such as live push ingest, pull-based collections, and heavy Replay jobs) start competing for resources, leading to latency spikes or data loss during bursts.
• Scaling thresholds: When the single Group approaches its practical operational limits regarding total open connections, Worker Processes per Node, or the maximum number of Workers that can be reasonably managed together.
• Operational agility: When different organizational teams require independent change windows, separate Git branches for configuration, or distinct deployment cadences.

Key Benefits ​

This topology offers the most streamlined operational experience:

• Simplest operational model: You only have one Worker Group /Fleet to size, monitor, and maintain.
• Centralized logic: Provides a single, central point for managing all Packs, schemas, Pipelines, and routing logic.
• Straightforward onboarding: New Sources and Destinations easily target the single, existing Worker Group/Fleet, minimizing topology choices for new teams.
• Predictable scaling: Scaling is primarily achieved by adding more Worker Nodes or increasing Worker Processes per Node until you approach the practical limits of connections or throughput for the Worker Group/Fleet.
